Lik450 Solar Road Studs – Cast Aluminum | 80-Ton Load Bearing | IP68 Waterproof | Five Light Colors

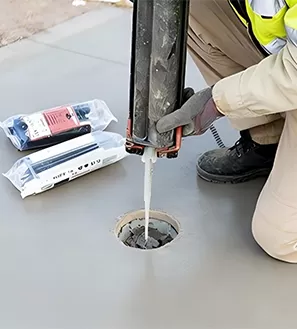

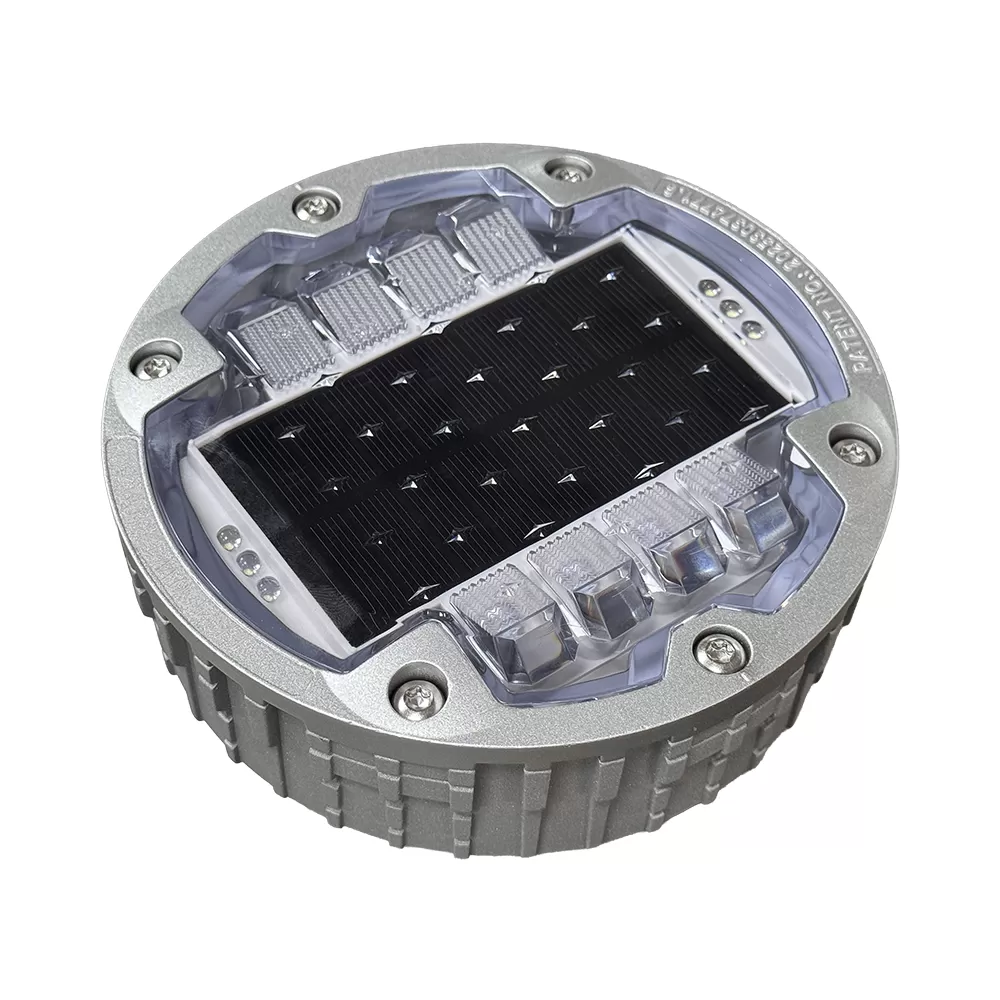

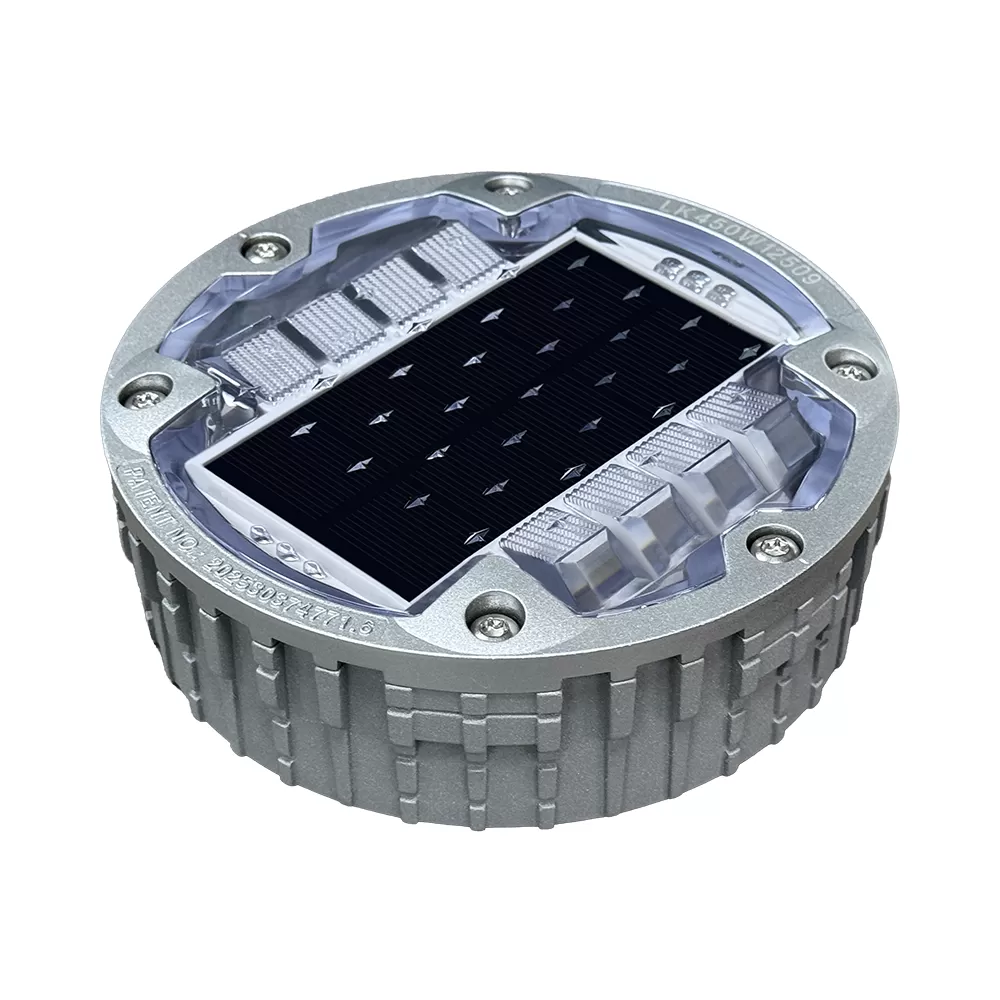

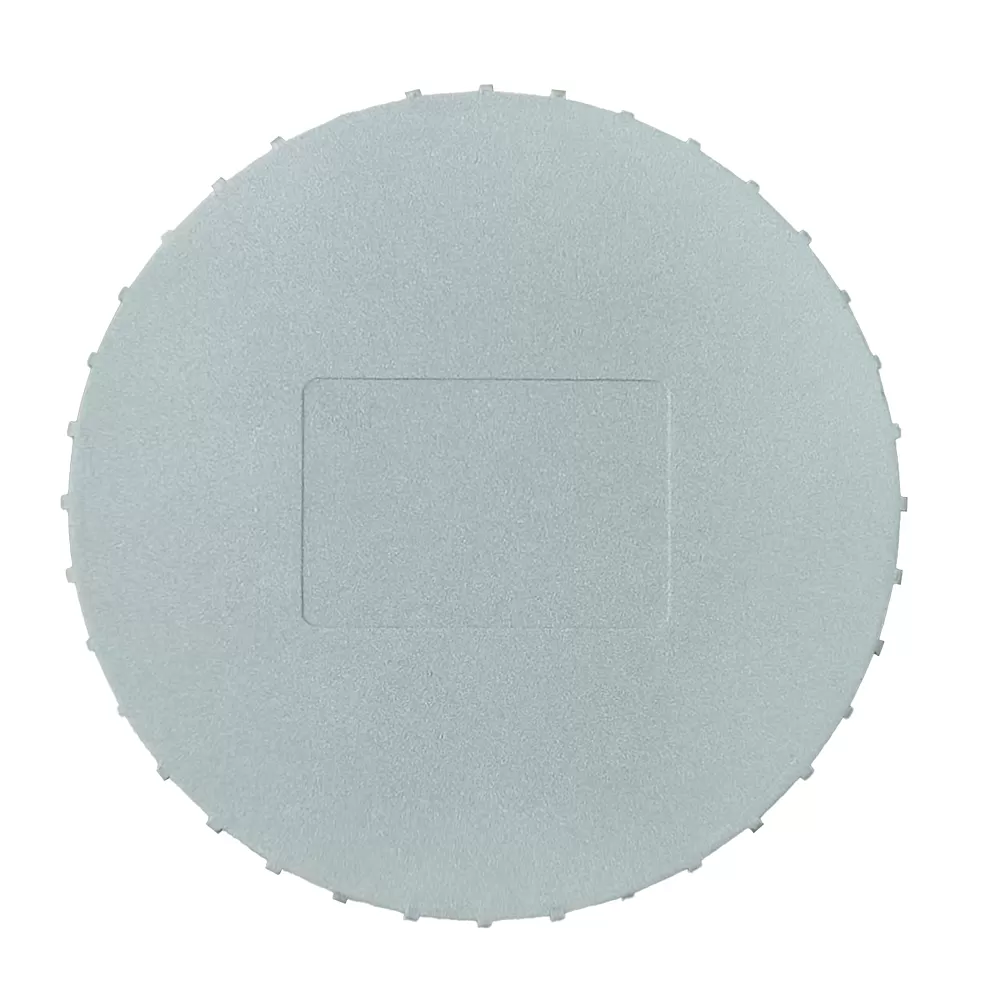

The Lik450 Solar Road Studs are patented products designed specifically for road safety. They feature a galvanized aluminum die-cast metal casing, offering excellent corrosion resistance and pressure resistance. The textured surface effectively enhances adhesion to concrete surfaces, making the installation more secure and improving durability and impact resistance, allowing for long-term adaptation to complex outdoor environments.
The products achieve an IP68 protection rating. Internally, they are uniformly encapsulated with transparent epoxy resin, completely isolating them from moisture, dust, and corrosive substances, ensuring stable operation even in rain, flooding, and high humidity environments.
The Lik450 is equipped with a heat-resistant lithium iron phosphate battery (LiFePO4, 3.2V 1200mAh), offering excellent thermal stability and cycle life. It features a 4.5V 200mA high-efficiency monocrystalline silicon solar panel, enabling efficient charging even in low light and cloudy/rainy weather. A full charge provides up to 120 hours of continuous operation, meeting long-term warning needs at night and in inclement weather.

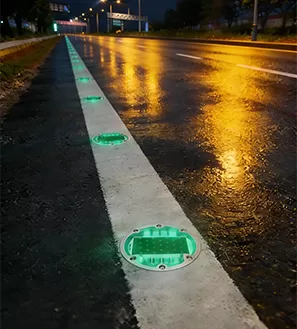

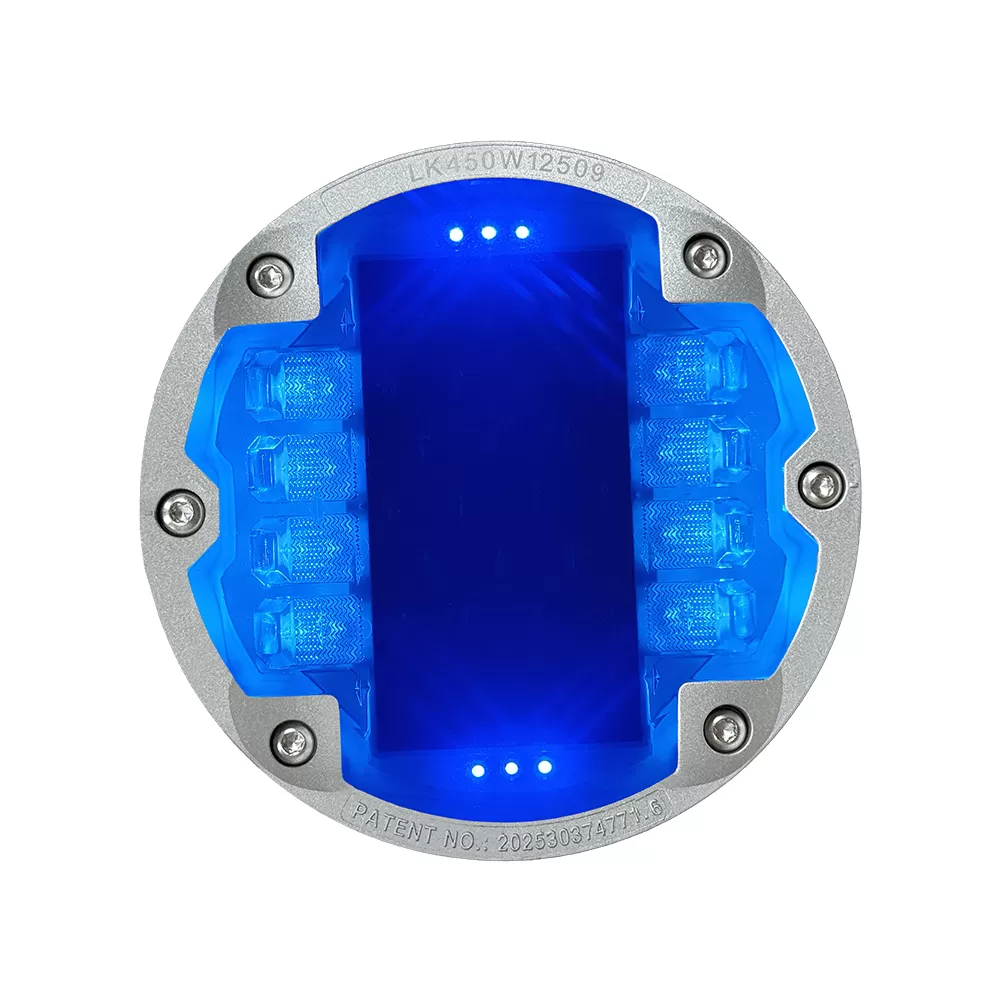

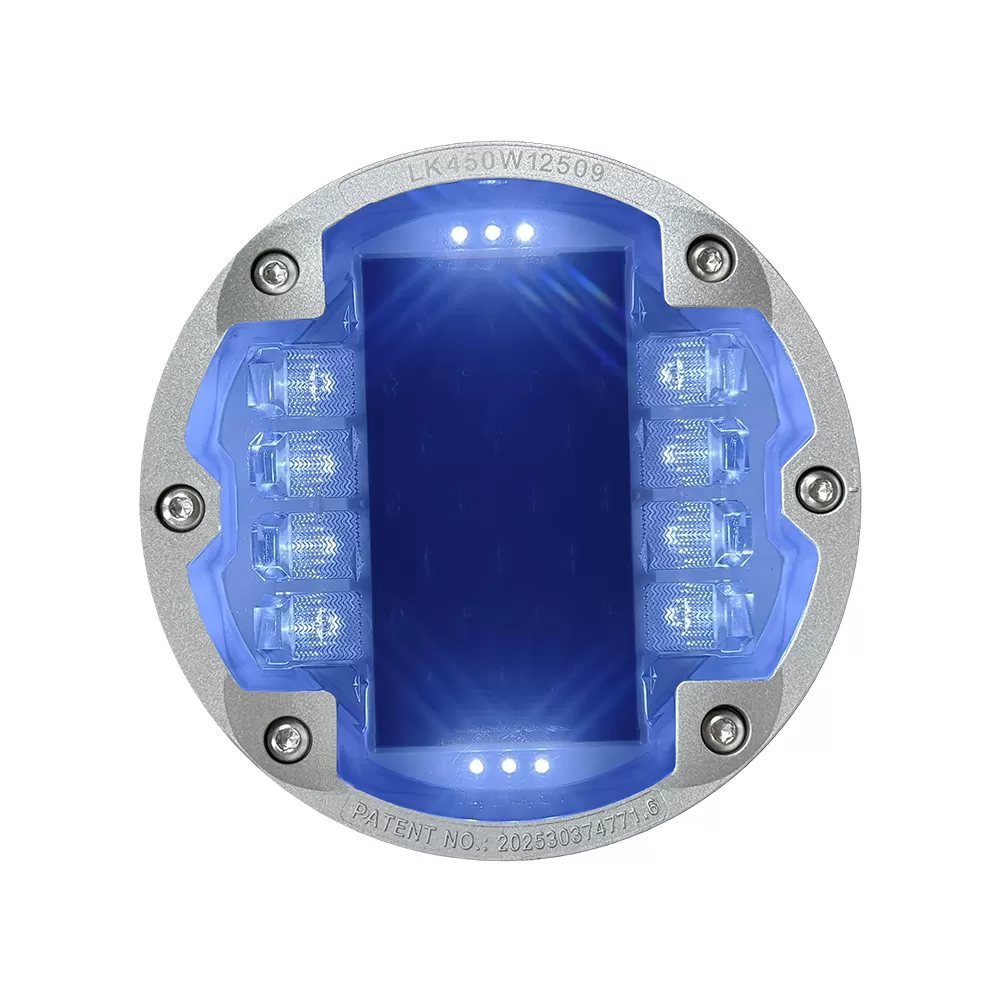

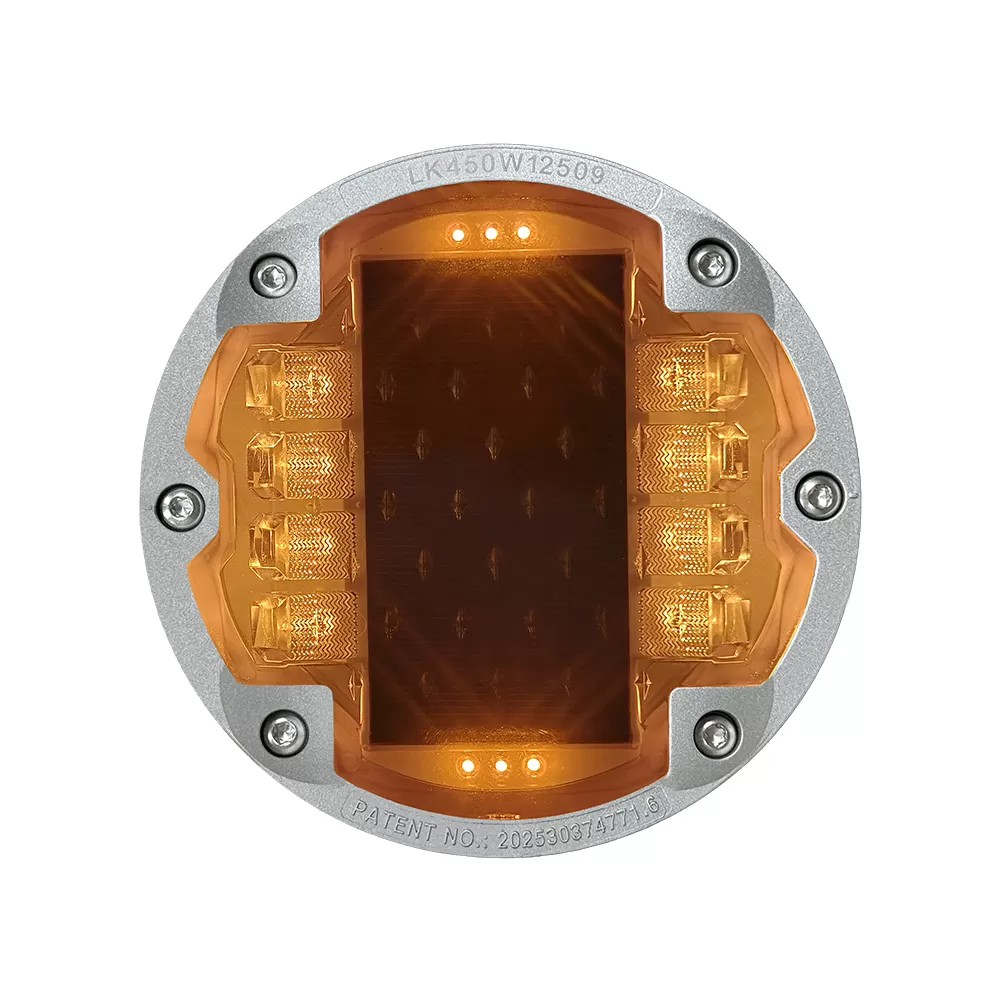

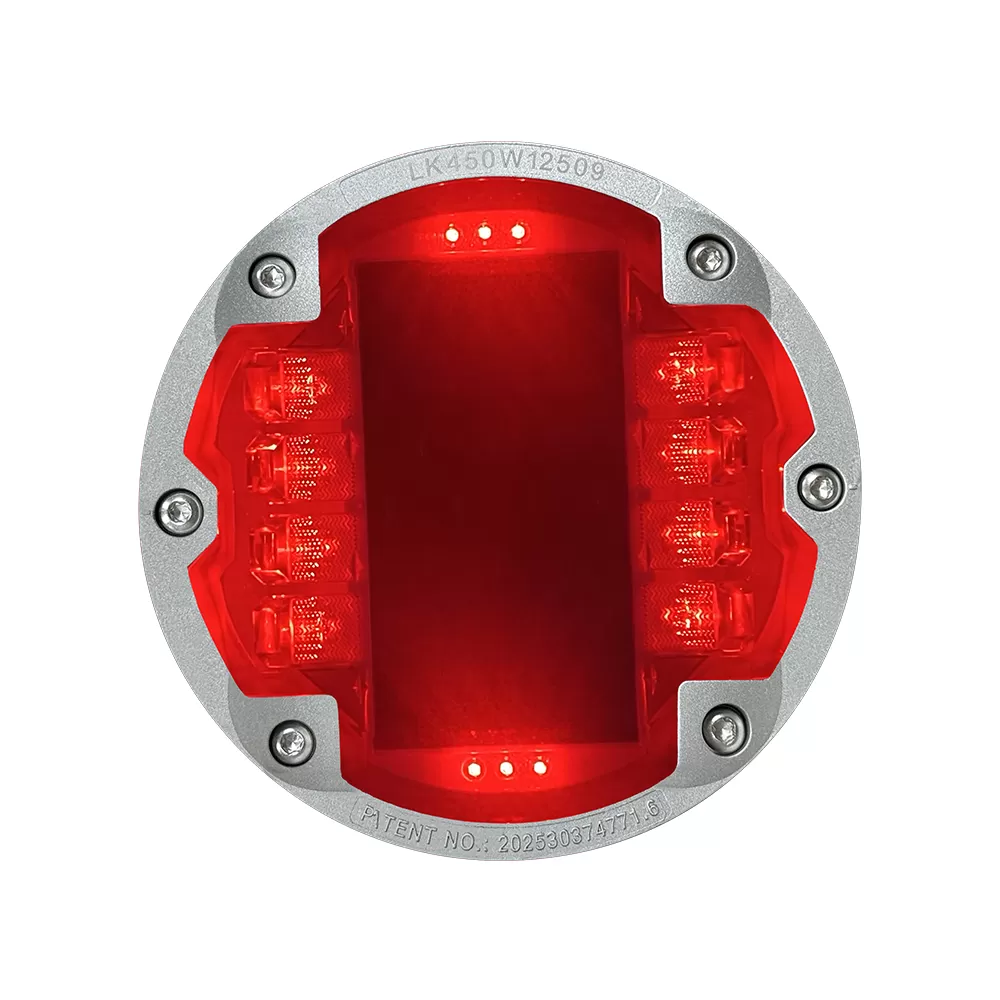

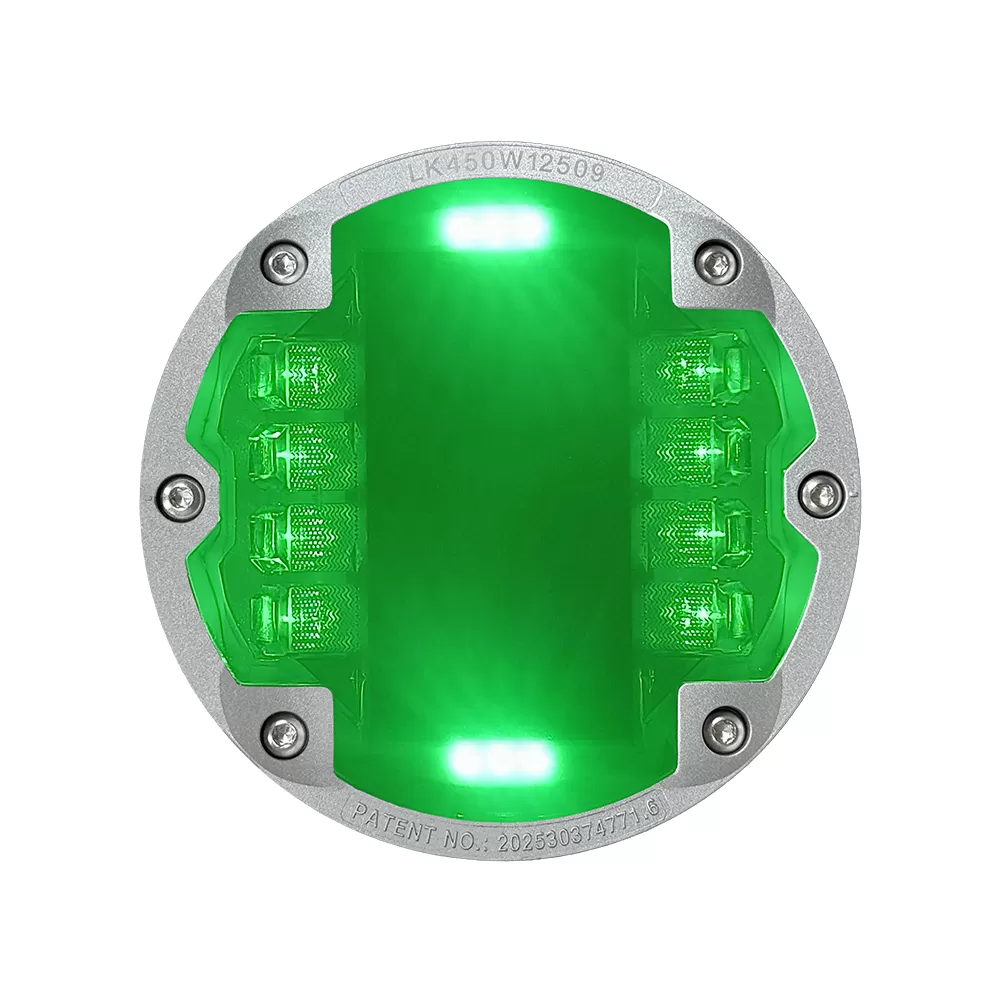

The product offers five light colors: white, blue, red, green, and yellow, which can be flexibly selected according to actual road needs. It is suitable for various scenarios such as highways, intersections, tunnel entrances and exits, and industrial roads, providing drivers with clearer visual guidance and improving overall road safety.
Specification of Lik-450 Solar Road Studs
| Power Supply | Mono (single) crystalline 4.5V,200mA |
| Battery | Anti-heat LiFePO4 3.2V, 1200mAh |
| LED Chip | 10mm 0.2W per chip Super bright 8pcs + 5mm LED 6pcs |
| Multiple color temperatures | Red light 620-625, Yellow light 588-594, Blue light 460-470, Green light 515-525, Pure white light 6000-6500-7000K |
| Work mode | Flashing (120times/min) or Steady |
| Working Time | 120h after fully charged |
| Gradient on LED Sides | 30° side gradient |
| Security Locks | 6pcs Stainless Steel Satety Locks |
| Body | Aluminum die-cast zinc-plated textured metal casing |
| Dimension | 150mm dia.x 50 mm |
| Top | Polycarbonate lens |
| Operating Temperature | -20°C to 80°C |
| Waterproof | IP68 |
| Compression Test | About 80 Tons |
| Carton Size | 485*325*195mm, 18pcs/CTN, 17865pcs/20ft 992CTN |
| N.W/G.W | 20/21.5KG |
| Weight | 1,120 grams |

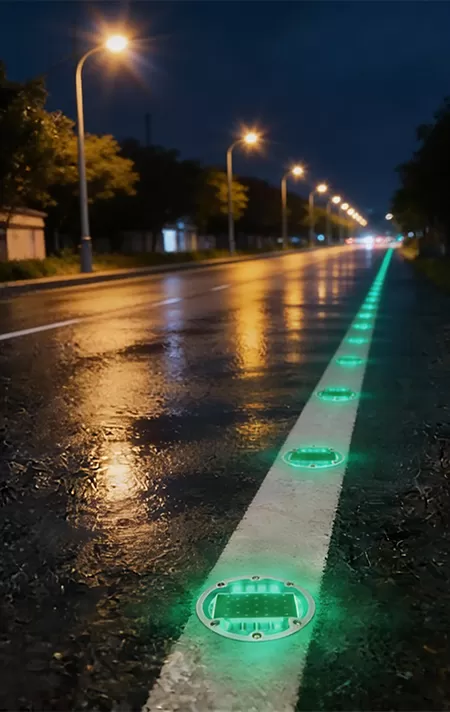

Advantages of Lik-450 Soalr Road Studs

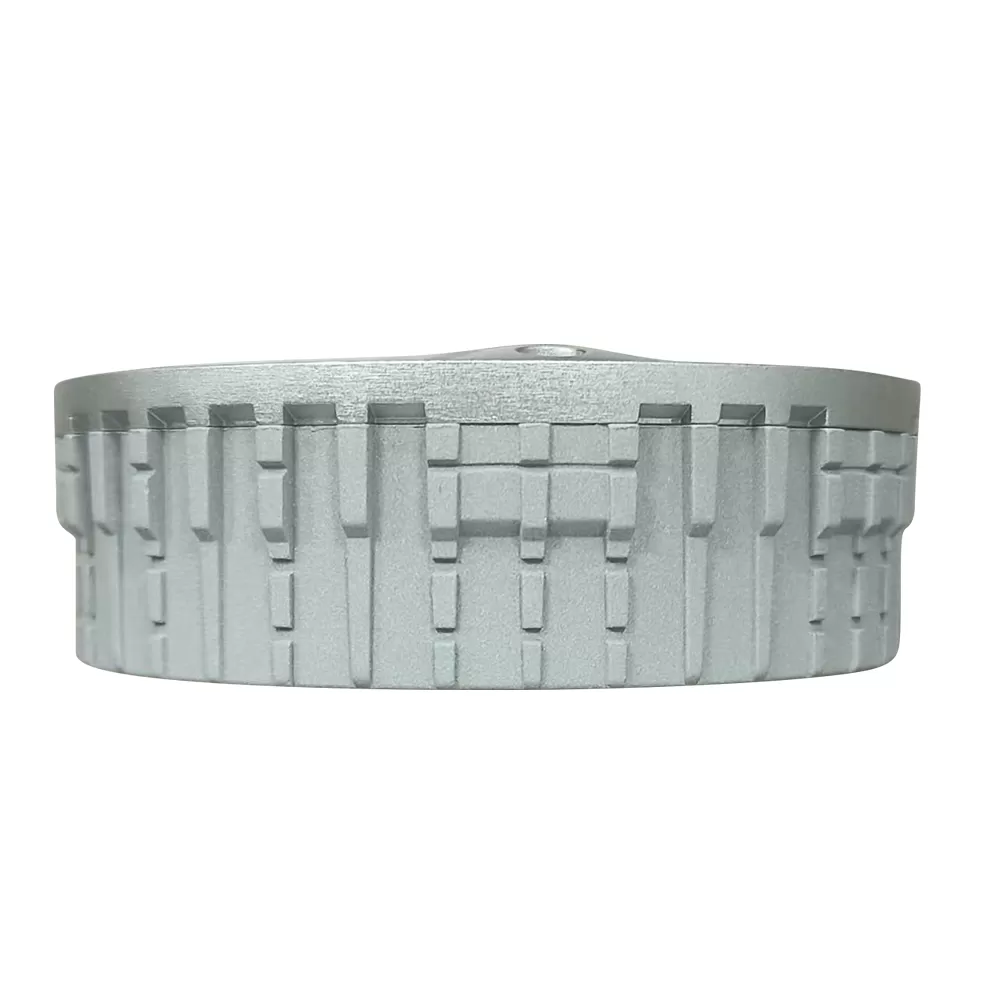

The Lik450 uses galvanized aluminum die-casting with a textured surface design to enhance adhesion to concrete and ensure a stable installation. The casing is corrosion-resistant and impact-resistant, capable of withstanding long-term outdoor environmental conditions.
Combining an internal gravity-balancing structure with polycarbonate lenses, the overall load-bearing capacity is greatly improved, enabling it to withstand the crushing of large vehicles and heavy trucks, making it suitable for high-traffic areas such as highways, intersections, and industrial roads.
The interior is uniformly potted with transparent epoxy resin, providing insulation and waterproofing, and effectively protecting electronic components. Designed specifically for extreme outdoor environments, it ensures stable operation even under rain, floods, and prolonged damp conditions.

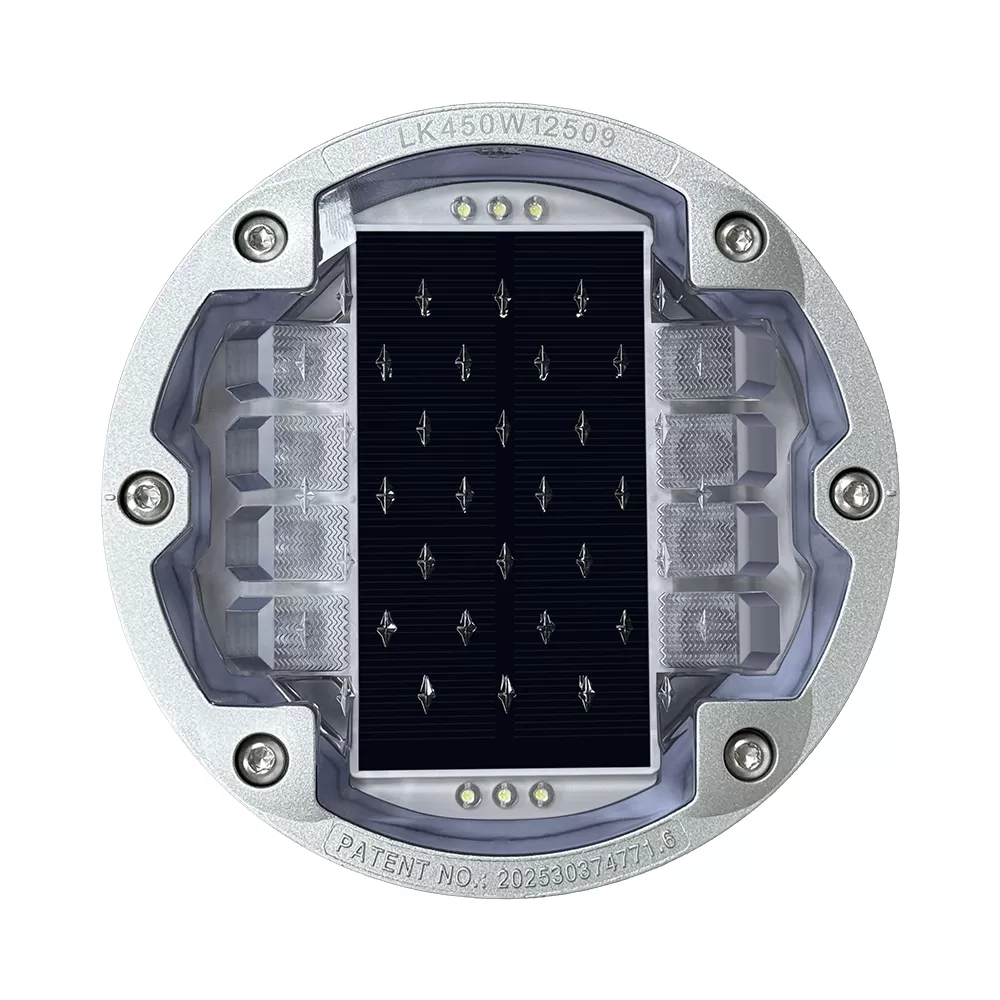

The polycarbonate lens has a light transmittance of up to 95% and is equipped with a 4.5V 200mA monocrystalline silicon solar panel, which can continuously charge and supply power even in low light conditions.
It has a built-in 3.2V 1200mAh LiFePO4 battery, which has excellent thermal stability and safety performance, and can work continuously for 120 hours after a full charge.

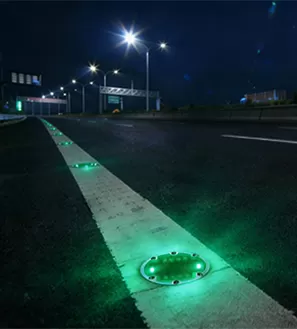

The Lik-450 Solar Road Studs feature a 30° side-tilted LED gradient design. Their brightness increases progressively with distance, significantly enhancing nighttime visibility for drivers and pedestrians, and effectively reducing accident risks.

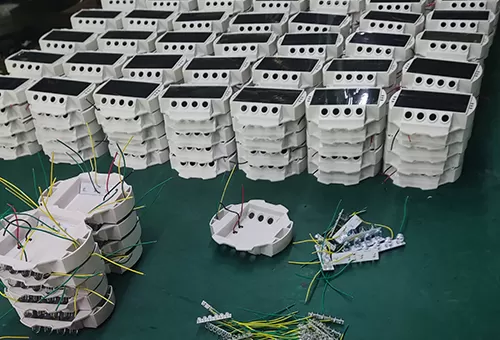

We are a high-end manufacturing plant specializing in the R&D and production of solar road studs, with many years of industry experience. The Lik450 Solar Road Studs are our patented products specifically designed to meet the road safety needs of high-load, extreme environments. Our factory is equipped with advanced aluminum die-casting technology and automated production equipment, ensuring that every product undergoes rigorous quality testing, exhibiting excellent corrosion resistance, pressure resistance, and long lifespan.
Our use of a die-cast aluminum metal casing and a high-efficiency solar charging system provides you with a more stable and efficient road safety lighting solution. All production processes adhere to international standards, guaranteeing the long-term stable operation of the Lik450 in harsh environments.
As a leading solar road stud manufacturer, we offer OEM/ODM customization services to meet the needs of different markets worldwide, ensuring tailored solutions for your road projects.
